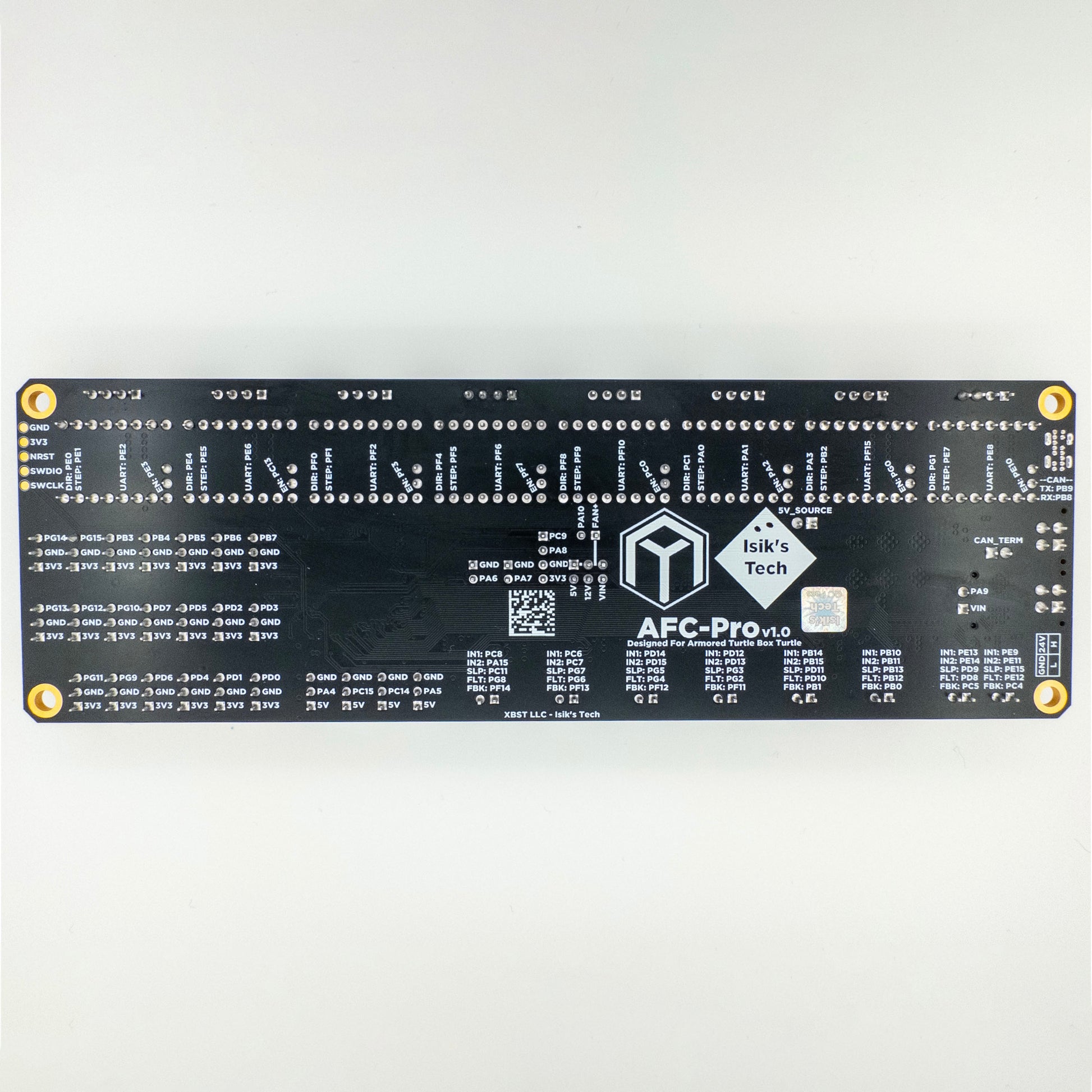

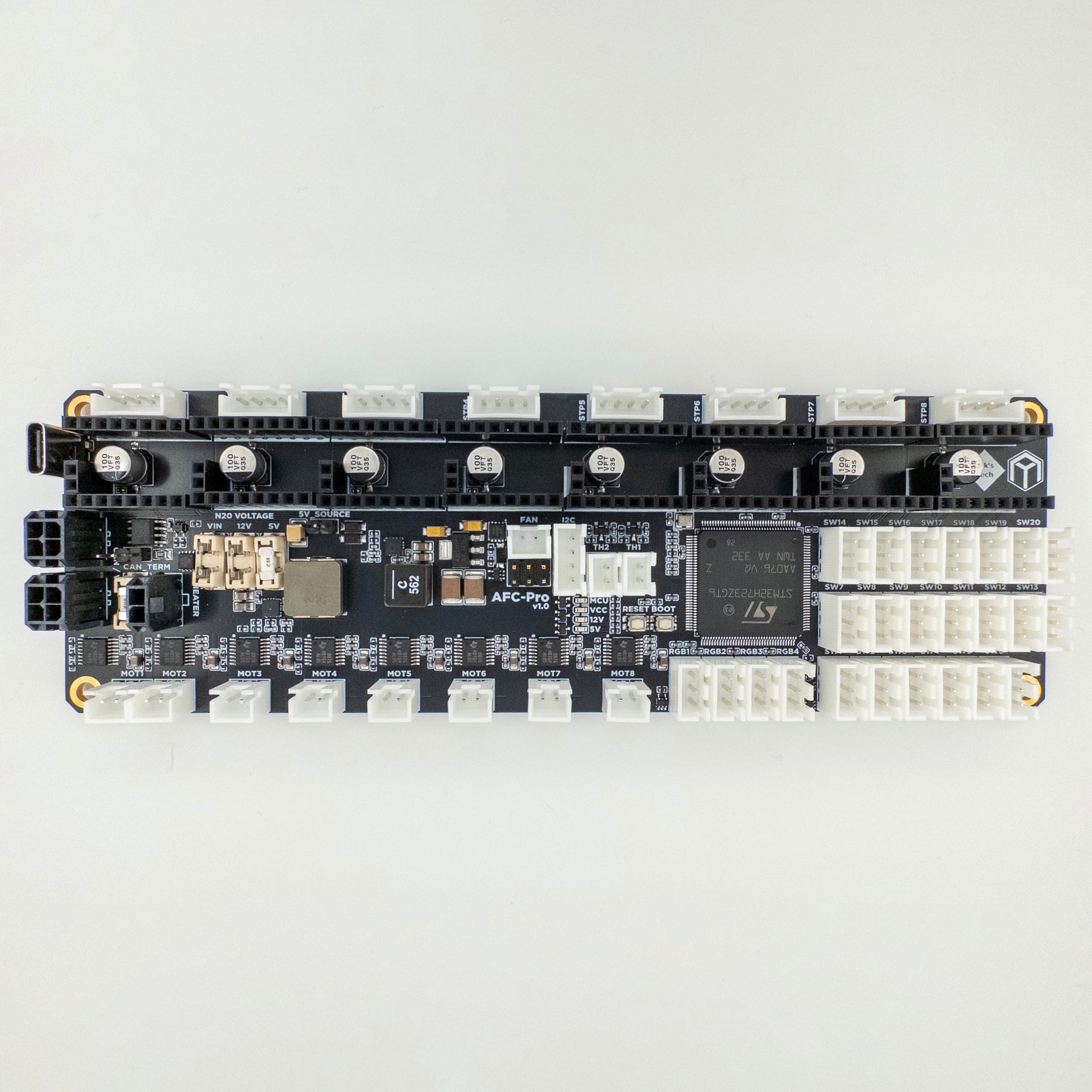

AFC-Pro - 8-Lane Box Turtle Controller PCB

AFC-Pro is a PCB designed for Armored Turtle's Box Turtle system. It features:

• 8x Stepstick Slots for TMC2209-based Stepsticks
• 8x Brushed DC Motor Drivers supporting 5V, 12V and 24V Motors
• 4x ARGB LED Connectors
• 20x Switch Connectors
• 2x Thermistor Connectors
• I2C connector for Chamber Sensors Like Our Nevermore Sensors
• Fan Connector with Selectable Voltage and Speed Control
• Heater Control
• STM32H723 MCU
• USB and CAN Support, With Spare CAN Connector for Daisy Chaining
• 5V and 12V Buck Converters

GitHub Repository of the project: https://github.com/xbst/AFC-Pro/

GitHub Repository of Box Turtle: https://github.com/ArmoredTurtle/BoxTurtle/

AFC-Pro was in closed beta testing since February. We're now moving into production. This is a preorder at a discounted price, expected to ship in June.

MX3.0 and XH connectors are included. Stepsticks aren't included.
