Birds' Nest CAN - CAN Hub for Toolchanger 3D Printers

Birds' Nest CAN - CAN Hub for Toolchanger 3D Printers

$49.99
$49.99
Sale Sold out
Shipping calculated at checkout.

22 in stock

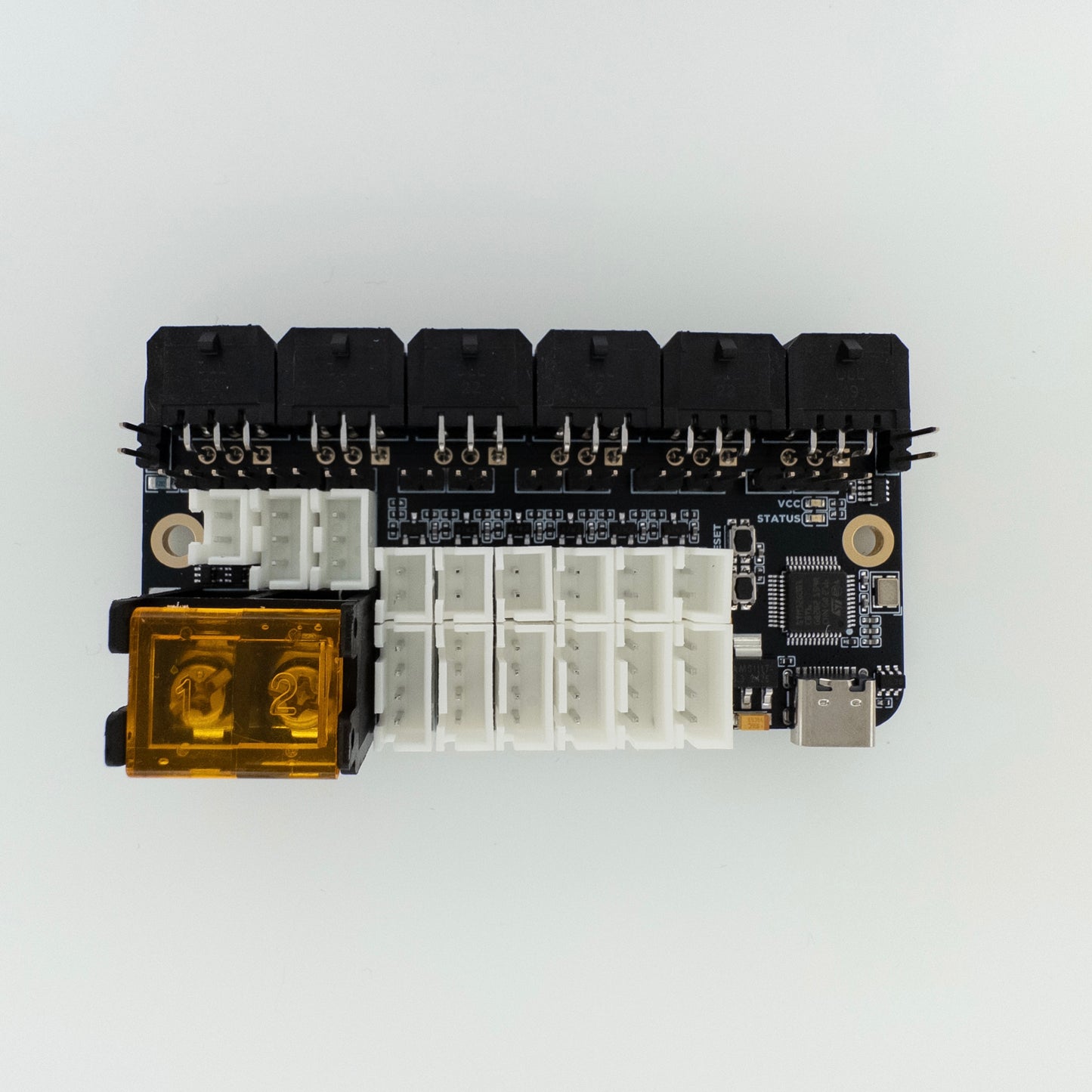

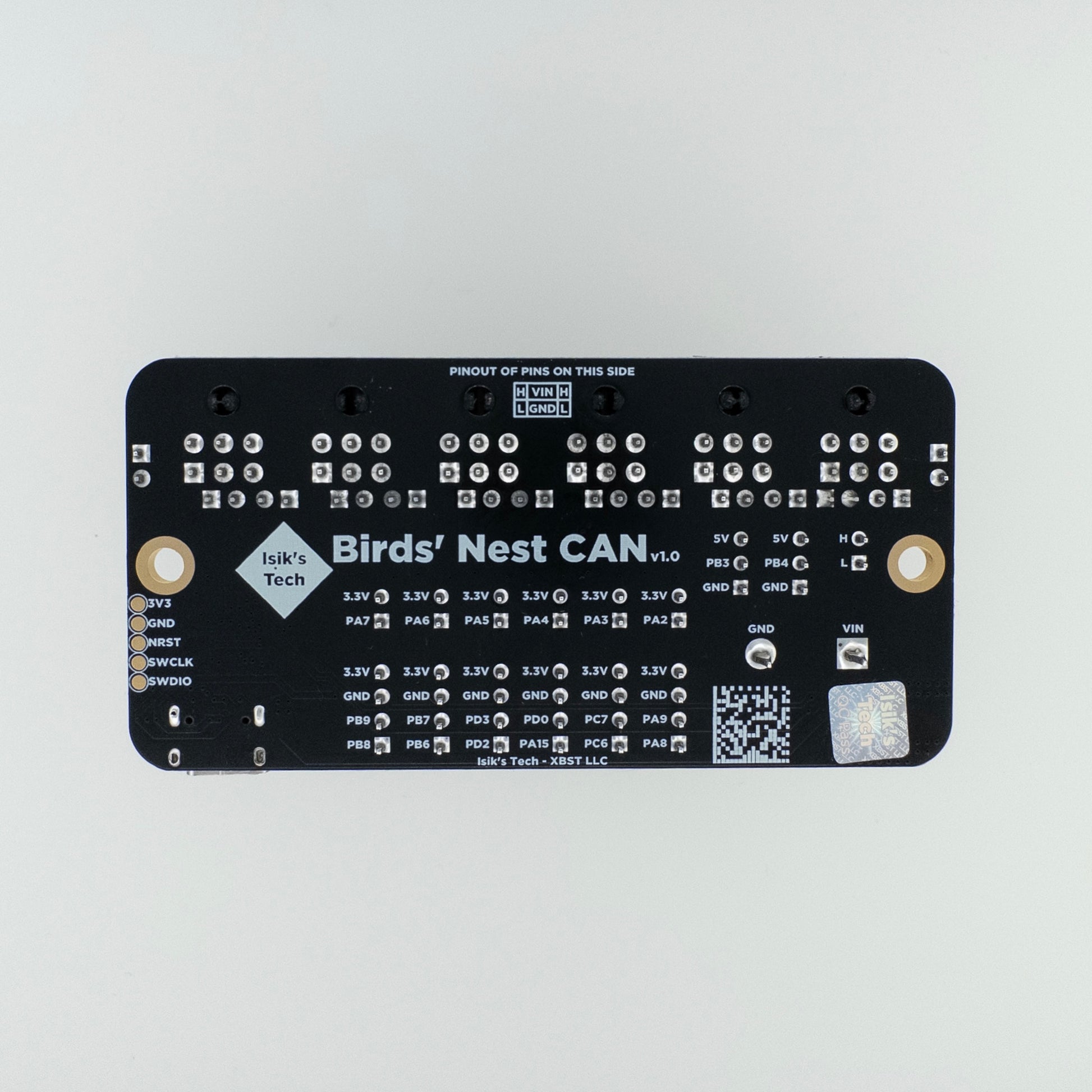

Birds' Nest CAN is a USB CAN hub PCB designed for toolchanger printers with CAN toolhead PCBs. It features:

  • 6x CAN Connectors for Up To 6 Toolheads
  • Expansion Ports for More CAN Devices
  • Follows Proper CAN Topology, Increasing Reliability
  • 6x 4-pin Filament Sensor Connectors
  • 6x Thermistor Connectors
  • 2x 5V ARGB Connectors

I am the original creator of this project, every sale here helps me fund the development of future PCB projects. Thanks!

GitHub Repository of the project: https://github.com/xbst/Birds-Nest-CAN

MX3.0 and XH connectors are included.

View full details
1 8
35

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Matt
Works Great On New Stealthchanger Build

I installed this on my new 6 toolhead Stealthchanger build, and it was by far the easiest CAN setup I've used yet. I wired the toolheads using the Igus Chainflex cable, so using both input and output pairs going to each toolhead, and all the toolheads worked without issue. I also hooked up filament sensors for all the ptfe inputs, and was so easy with provided inputs on the board.

D
Duke
Does its job, after figuring it out.

It does its job after getting it set up.
In my opinion, the documentation is a bit confusing, but I was able to get everything working.

M
MRSalgoud
Work great

Works great once you figure it out.
