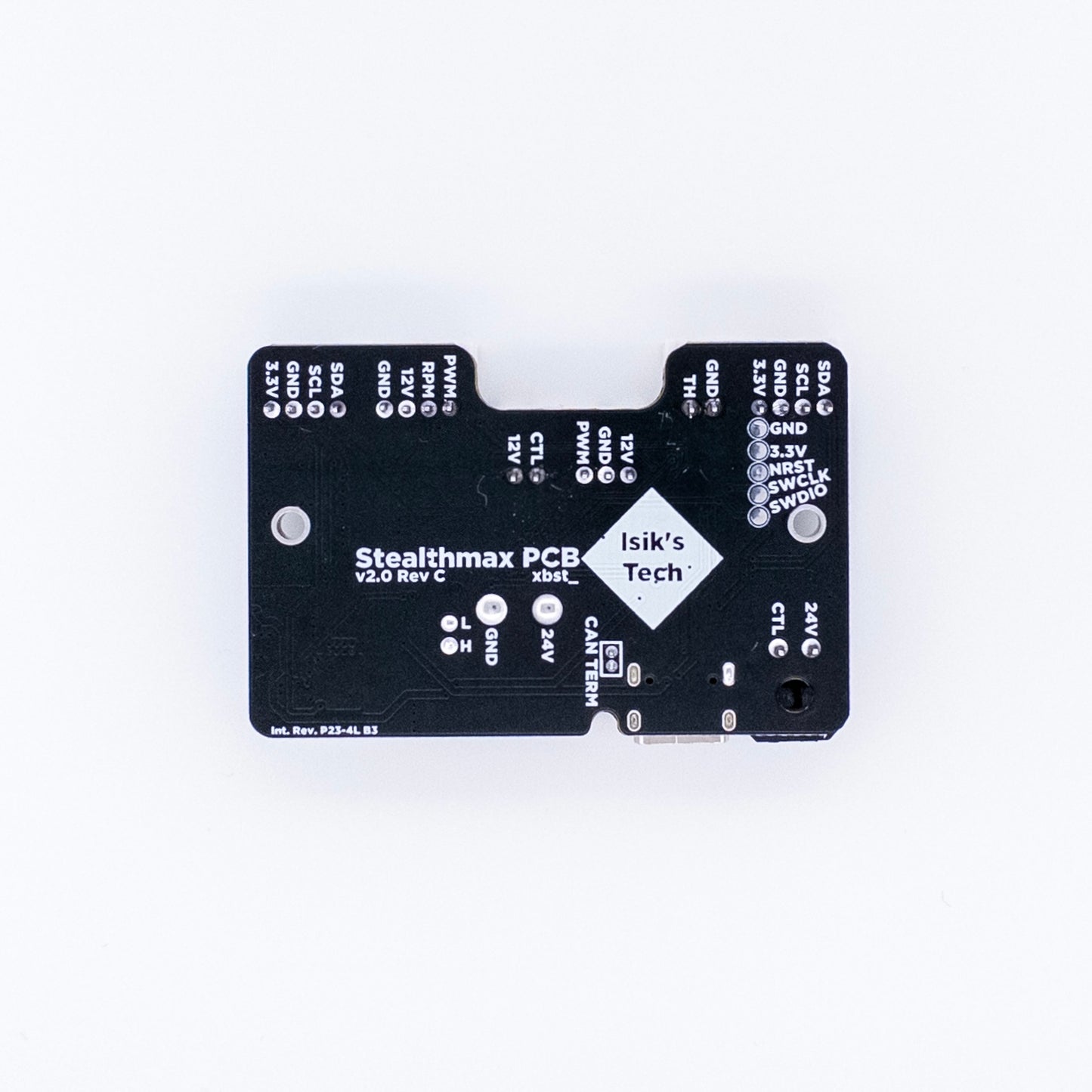

Nevermore Stealthmax PCB 2

Nevermore Stealthmax PCB 2

$54.99
$54.99
Sale Sold out
Shipping calculated at checkout.

Out of stock

An open source, STM32G0B1 based controller for Nevermore Stealthmax air filters for Voron 3D printers. Eliminates the complicated wiring needed for the Nevermore Stealthmax, adds 4-pin PWM fan control for the filter fan, converts 24V power to 12V, 5V and 3.3V power, eliminating needing separate buck converters or more complicated wiring, reads sensor data from I2C air quality sensors, controls UV LEDs and peltiers and reads thermistors. Works with Klipper firmware. Communicates with Klipper via CAN Bus or USB C.

Features:

  • 1x 12V 4-Pin PWM Fan Connector
  • 2x 3.3V I2C Sensor Connectors
  • 1x 12V UV LED Connector, MOSFET Dimming
  • 1x 12V AUX UV LED Connector, PWM Signal
  • 1x 24V Peltier Connector, MOSFET Control
  • 1x Thermistor Connector
  • 1x 3950 Thermistor on PCB
  • 24V Power Input, 12V & 5V Buck Converters
  • CAN Bus or USB C for Communication with Klipper

The JST-PH, MX3.0 and XT30(2+2) connectors and pins for the connectors on the PCB are included.

GitHub repository of the project (instructions): https://github.com/xbst/Nevermore-PCB

I am the original creator of this project, every sale here helps me fund the development of future PCB projects. Thanks!

Don't forget to order sensors for your Nevermore Stealthmax.

View full details
1 8

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Marco
Great PCB

Great quality PCB in tandem with the combined sensors it works really well. I wish there was better documentation for this, and a version that could run nevermore controller.

A
Andrii Panasiuk
Great controller

Works way better than other wireless controller, really cool that you can use it with main PSU without a need fo a separate buck converter.

Really wish that it had dedicated port for LED Strips, currently using AUX UV port with PWM.
